12m uhf rfid reader long range rfid reader for Parking color White Access control system
General Description
ZK_RFID102 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
1.Self-intellectual property;
2.Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3.902~928MHz frequency band(frequency customization optional);
4.FHSS or Fix Frequency transmission;
5.RF output power up to 30dbm(adjustable);
6.12dbi antenna optional with effect distance up to 12m;
7.Support auto-running, interactive and trigger-activating work mode;
8.Low power dissipation with single +9 DC power supply;
9.Support RS232, RS485, Wiegand interface(standard)
Product Specification of ZK-RFID102 for Parking
| Item | Value |
| Model | ZK-RFID102 |
| Antenna gain | 8dbi |
| Max Reading Range | 12m |
| Communication | Standard, RJ45 or Wifi |
| Protocol | EPC Gen2, ISO180006B |
| Tag | NXP,ALIEN,IMPINJ |
| Power Dissipation | 4.5W |
| Dimension | 450*450*75 |
| Weight | 3600g |

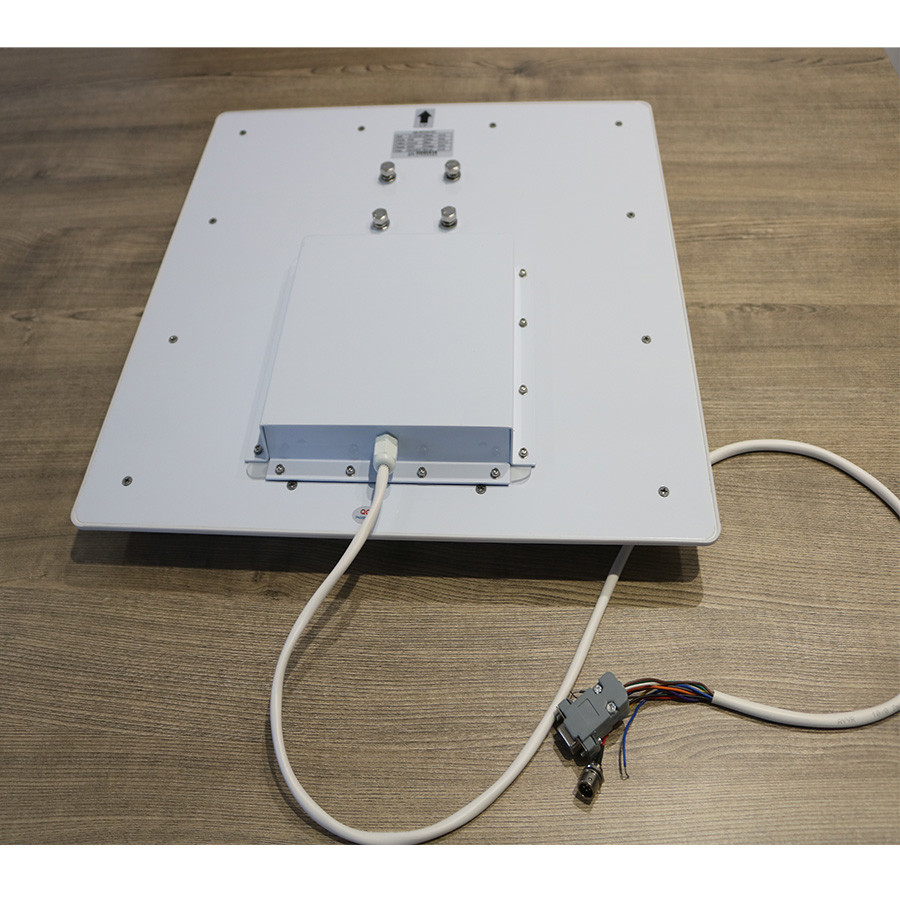

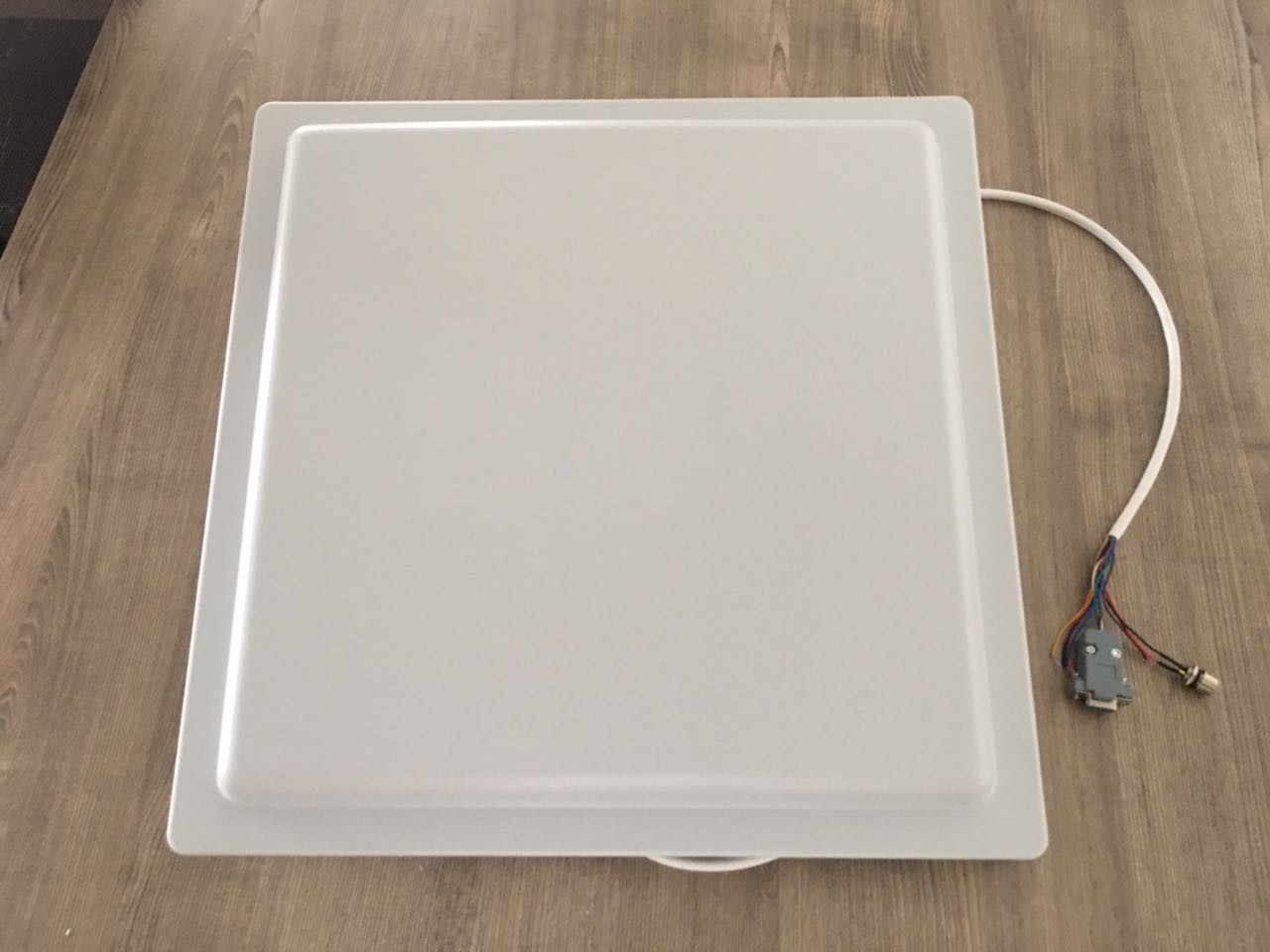

Production Pictures
Company Introduction:
Shenzhen ZKHY RFID Technology Co.,Ltd is committed to RFID (Radia Frequency Identification Devices)products development and exploitation production and distribution with 100 employee.
After 7 years of development, our company not only has the domestic leading RFID core technology but also has independent intellectual property rights of RFID.
At the same time, our company can prvide complete solution and timely after-sale service for project.Based on special idea in design and function, the main technnical indexes of AKHY RFID products has achieved or exceeded world level.
FAQ
1. Are you manufacturer?
Yes, we are 7 years professional RFID hardware manufacturer.
2. What is your mainly products
Our products mainly include RFID reader, Cascaded Access Gate ,and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. Which Payment and Shipping acceptable?
Paypal, TT, Wester union acceptable.
|
|
12m uhf rfid reader long range rfid reader for Parking color White Access control system Images
|
